Texas Instruments ESD321 1-Channel 30kV ESD Protection Diodes

Texas Instruments ESD321 1-Channel 30kV ESD Protection Diodes are uni-directional, featuring low dynamic resistance and low clamping voltage. The devices come in a 0402 industry-standard package with an industrial temperature range. The ESD321 is rated to dissipate ESD strikes up to ±30kV. This meets the IEC 61000-4-2 international standard. System-level protection is ensured against transient events with ultra-low dynamic resistance (0.13Ω) and extremely low clamping voltage (6.8V at 16A TLP). The ESD321 is suitable for protecting interfaces such as USB 2.0 and Ethernet 10/100/1000 Mbps, offering a low capacitance of 0.9pF I/O.

Features

  • IEC 61000-4-2 Level 4 ESD protection
    • ±30kV Contact discharge
    • ±30kV Air gap discharge
  • IEC 61000-4-4 EFT Protection
    • 80A (5/50ns)
  • IEC 61000-4-5 Surge protection
    • 6A (8/20µs)
  • DC Breakdown voltage of 4.5V (Minimum)
  • Low leakage current of 0.1nA (Typical)
  • Extremely low ESD clamping voltage
    • 6.8V at 16A TLP (I/O to GND)
    • RDYN: 0.13Ω (I/O to GND)
  • Industrial temperature range of –40°C to +125°C
  • I/O Capacitance of 0.9pF (Typical)
  • Industry-standard 0402 package (DFN1006P2)

Applications

  • End equipment
    • Wearables
    • Industrial and service robots
    • Laptops and desktops
    • Mobile and tablets
    • Set-top boxes
    • DVR and NVR
    • TV and monitors
    • EPOS (Electronic Point of Sale)
  • Interfaces
    • USB 2.0/1.1
    • GPIO
    • Ethernet 10/100/1000Mbps
    • Pushbuttons
    • Audio

Block Diagram

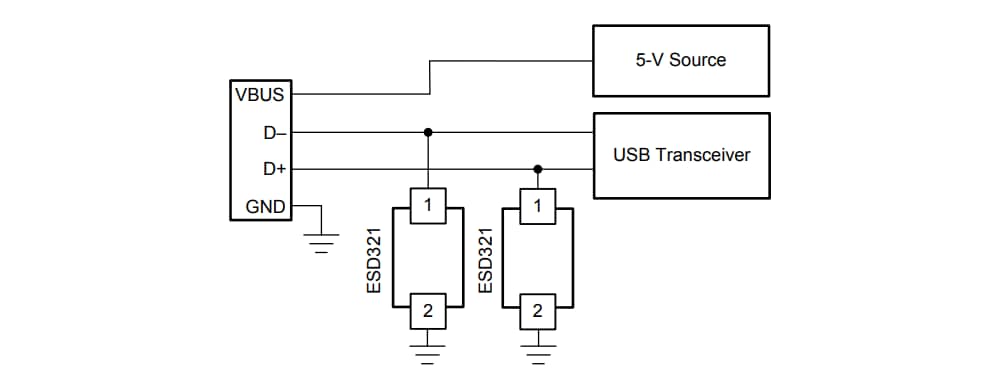

Block Diagram - Texas Instruments ESD321 1-Channel 30kV ESD Protection Diodes
Pubblicato: 2018-09-21 | Aggiornato: 2023-05-01
