Rectron RL20x Junction Plastic Rectifiers

Rectron RL20x Junction Plastic Rectifiers feature low leakage, low forward voltage drop, and high current capability. These rectifiers operate from 50V to 1000V voltage range, 2A average forward rectified current (IO), and -55°C to 150°C operating temperature range. The RL20x rectifiers offer UL flammability classification 94V-O and are available in molded plastic cases.

Features

  • Low leakage
  • Low forward voltage drop
  • High current capability
  • Glass passivated junction
  • Weighs about 0.38gm
  • UL flammability classification 94V-O

Specifications

  • 50V to 1000V voltage range
  • 2A average forward rectified current (IO)
  • -55°C to 150°C operating temperature range
  • 70A peak forward surge current (IFSM)

Dimensions Diagram

Mechanical Drawing - Rectron RL20x Junction Plastic Rectifiers

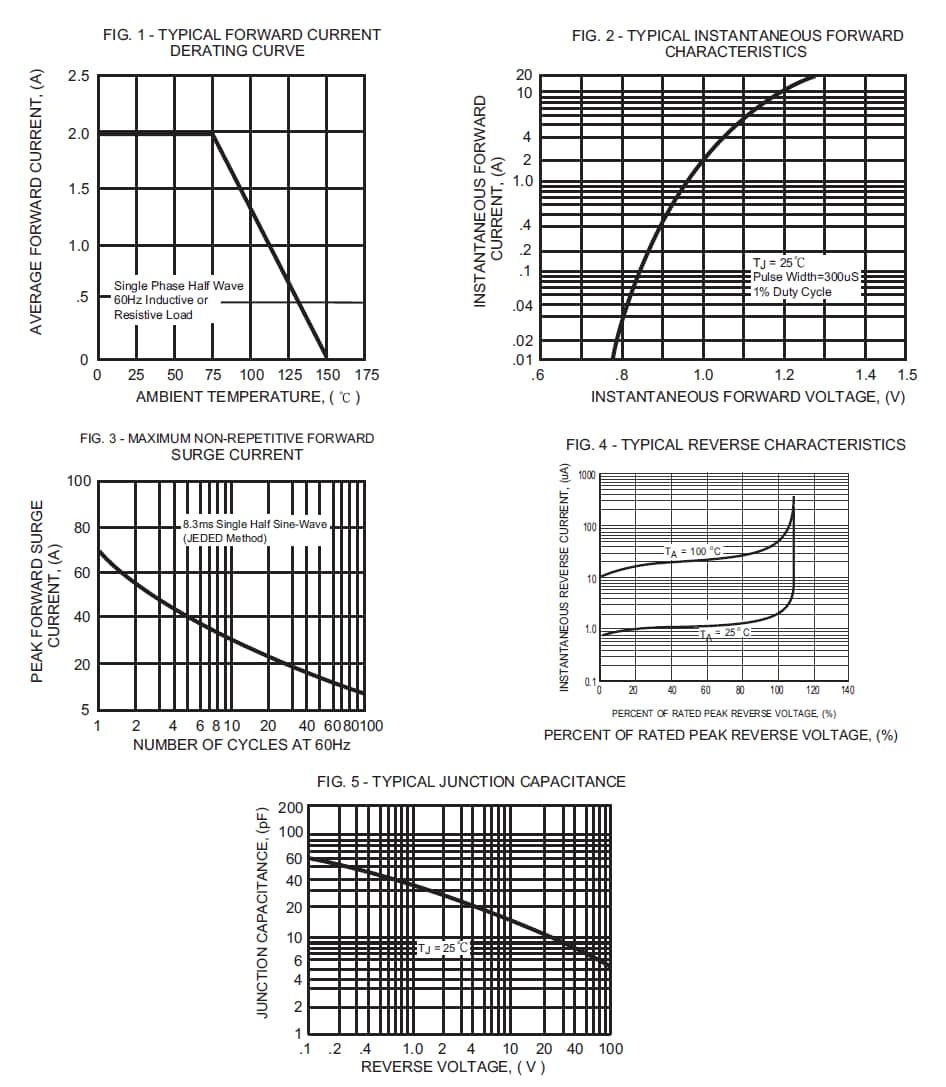

Characteristic Curves

Performance Graph - Rectron RL20x Junction Plastic Rectifiers
View Results ( 21 ) Page
Codice prodotto Scheda dati Vr - Tensione inversa Vf - Tensione diretta Temperatura di lavoro minima Temperatura di lavoro massima RoHS - Mouser
RL207-B RL207-B Scheda dati 1 kV 1.1 V - 55 C + 150 C E
RL207G-T RL207G-T Scheda dati 1 kV 1.1 V - 55 C + 150 C E
RL201-B RL201-B Scheda dati 50 V 1.1 V - 55 C + 150 C E
RL201-T RL201-T Scheda dati 50 V 1.1 V - 55 C + 150 C E
RL201G-B RL201G-B Scheda dati 50 V 1.1 V - 55 C + 150 C E
RL202-B RL202-B Scheda dati 100 V 1.1 V - 55 C + 150 C E
RL202-T RL202-T Scheda dati 100 V 1.1 V - 55 C + 150 C E
RL202G-B RL202G-B Scheda dati 100 V 1.1 V - 55 C + 150 C E
RL203-B RL203-B Scheda dati 200 V 1.1 V - 55 C + 150 C E
RL203-T RL203-T Scheda dati 200 V 1.1 V - 55 C + 150 C E
