Rectron P6KE GPP Transient Voltage Suppressor Diodes

Rectron P6KE GPP (Glass Passivation Pellet) Transient Voltage Suppressor Diodes feature excellent clamping capability, low Zener impedance, and fast response time. These diodes operate at 600W peak power dissipation at 1ms, 5W steady-state power dissipation (PM(AV)), and 100A peak forward surge current (IFSM).

Features

  • Glass passivated chip construction
  • Excellent clamping capability
  • Low Zener impedance
  • Fast response time

Specifications

  • 600W peak power dissipation at 1ms
  • 5W steady-state power dissipation (PM(AV))
  • 100A peak forward surge current (IFSM)
  • -55°C to 150°C operating temperature range

Dimensions Diagram

Mechanical Drawing - Rectron P6KE GPP Transient Voltage Suppressor Diodes

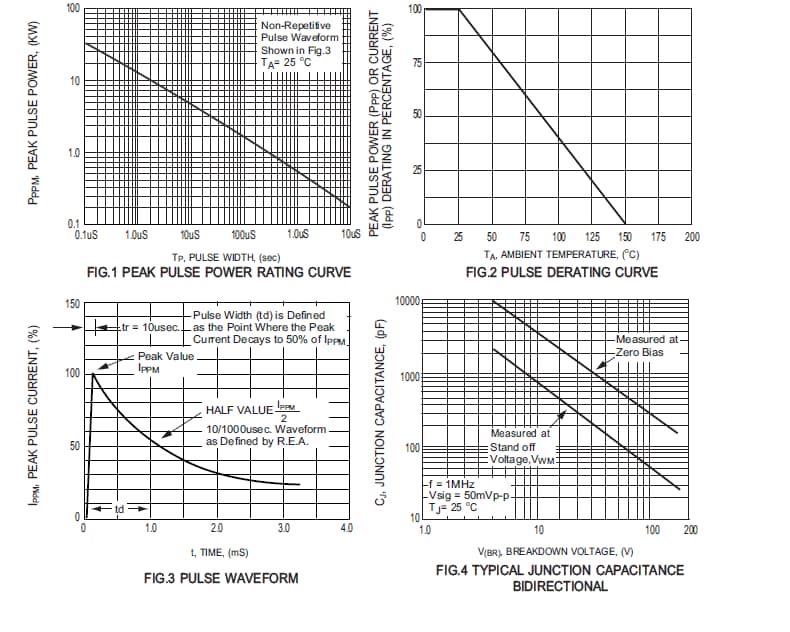

Characteristic Curves

Performance Graph - Rectron P6KE GPP Transient Voltage Suppressor Diodes
View Results ( 36 ) Page
Codice prodotto Scheda dati Tensione di lavoro Tensione di rottura Tensione di clamping Temperatura di lavoro minima Temperatura di lavoro massima RoHS - Mouser
P6KE200A-T P6KE200A-T Scheda dati 171 V 210 V 274 V - 55 C + 150 C Y
P6KE12-T P6KE12-T Scheda dati 9.72 V 10.8 V 17.3 V - 55 C + 150 C Y
P6KE15-T P6KE15-T Scheda dati 12.1 V 13.5 V 22 V - 55 C + 150 C E
P6KE150-T P6KE150-T Scheda dati 121 V 135 V 215 V - 55 C + 150 C E
P6KE150A-T P6KE150A-T Scheda dati 128 V 158 V 207 V - 55 C + 150 C Y
P6KE15C-B P6KE15C-B Scheda dati 12.1 V 13.5 V 22 V - 55 C + 150 C E
P6KE160C-T P6KE160C-T Scheda dati 130 V 144 V 23.5 V - 55 C + 150 C E
P6KE18-T-S-R01-B P6KE18-T-S-R01-B Scheda dati 26 V - 55 C + 150 C Y
P6KE18-T-S-R01-T P6KE18-T-S-R01-T Scheda dati 26 V - 55 C + 150 C Y
P6KE18C-T P6KE18C-T Scheda dati 14.5 V 16.2 V 26 V - 55 C + 150 C E
Pubblicato: 2021-05-25 | Aggiornato: 2022-03-11
