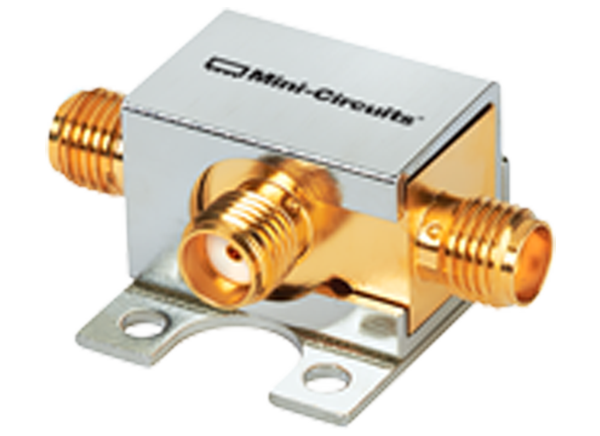

Mini-Circuits ZX75BP-893-S+ Coaxial-Ceramic Resonator Filter
Mini-Circuits ZX75BP-893-S+ Coaxial-Ceramic Resonator Filter offers low insertion loss in a small form factor with an HY1238 case style. This 50Ω filter utilizes ceramic material with a high dielectric constant and superior Q factor. The technology enables the construction of bandpass and bandstop filters, diplexer, and multiplexer designs. The ZX75BP-893-S+ is ideally suited for transmitter and receiver signal chains due to the low insertion loss combined with excellent power handling. Mini-Circuits ZX75BP-893-S+ Coaxial-Ceramic Resonator Filter is built with rugged construction to withstand multiple demanding reflow cycles. Applications include aviation, cellular services, defense systems, and more.
Features
- Low insertion loss with excellent power handling
- Fractional bandwidth from <1 to 25%
- Excellent temperature stability
- Rugged construction to handle demanding environmental conditions
- Wide spur-free stopband for better receiver sensitivity
- High selectivity for better adjacent channel rejection and dynamic range
- Good voltage standing wave ratio (VSWR)
- Connectorized package
- HY1238 case style
- RoHS compliant
Applications
- Aviation
- Public cellular networks, GSM
- Cellular services
- Defense systems

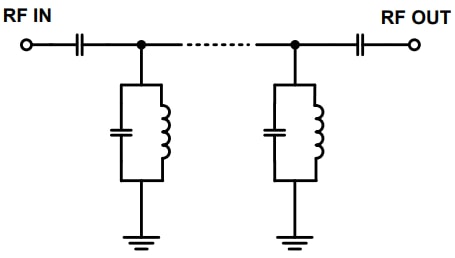

Functional Schematic

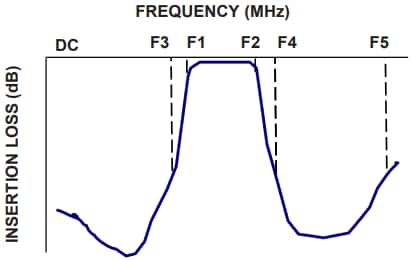

Typical Frequency Response
