Microsemi / Microchip ZL402x Clock Fanout Buffers

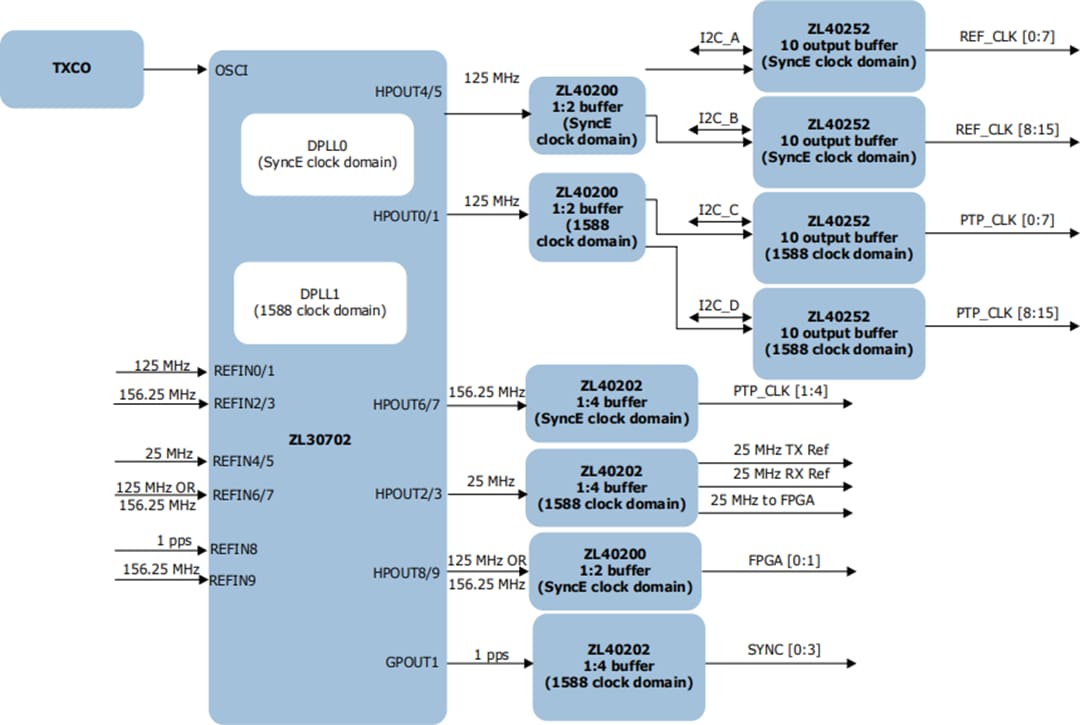

Microsemi / Microchip ZL402x Clock Fanout Buffers offer six fanout combinations with Low-Voltage Positive Emitter-coupled Logic (LVPECL) or Low-voltage Differential Signaling (LVDS) output types. These clock fanout buffers are categorized into miClock and miSmart variants. The ZL402x clock buffers feature low skew and ultra-low additive jitter for the different frequency ranges. The ZL402x clock buffers combine with miClockSynth™ synthesizers to create a simplified, reliable, and low-cost complete clock tree.

The ZL402x clock buffers are offered in a variety of input and output configurations including LVPECL, LVDS, and High-speed Current-Steering-Logic (HCSL). These clock buffers add a serial port interface and integer dividers on the Low Voltage Complementary Metal Oxide Semiconductor (LVCMOS).

The Microsemi / Microchip ZL402x Clock Fanout Buffers are available in QFN-32, QFN-40, and QFN-48 packages with a -40ºC to +85ºC operating temperature range.

Features

miClockBuffers:
- Clock rates up to 750MHz
- Six fanout combinations 1:2, 1:4, 1:6, 1:8, 2:6, and 2:8
- LVPECL, LVDS, CML, HCSL or LVCMOS inputs for devices with internal or external input termination
- LVPECL or LVDS outputs
- Ultra-low additive jitter (as low as 39fs RMS)

miSmartBuffers:
- Provides 3, 6, or 10-output programmable fanout buffers with multi-format I/O and per-output dividers
- LVCMOS output type
- Operating temperature ranges from -40ºC to +85ºC
- SMD/SMT mounting style
QFN-32, QFN-40, and QFN-48 package options

Applications

Clock signal fanout, format conversion, frequency conversion, frequency division, and skew adjustment in a variety of equipment types
Processors, Network Processing Units (NPUs), Field Programmable Gate Arrays (FPGAs), and 10G CDRs
High-speed ADCs and DACs, PCIe interface devices, Ethernet switches, and PHYs

Clock trees for optical, Optical Transport Network (OTN), Synchronous Optical Network (SONET), and Synchronous Digital Hierarchy (SDH)
Wavelength Division Multiplexing (WDM), storage, networking, and broadcast video applications
