Melexis DVK IMC Hall Shield Development Kit

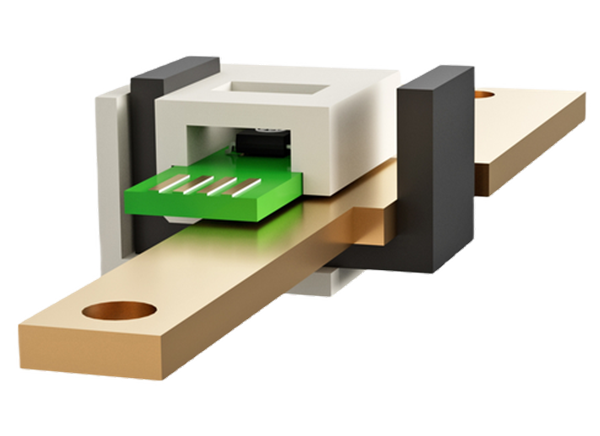

Melexis DVK IMC Hall Shield Development Kit evaluates the performance of the MLX91208, MLX91216, and MLX91218 IMC-Hall® current sensor ICs. The DVK IMC Hall Shield plug-and-play development kit includes everything from the copper bus bar to sensors and shields. This kit comes with an extra PCB to connect any other variant and features a measurement range up to 700A with the smallest shield and up to 1400A with the biggest shield. Melexis DVK IMC Hall Shield Development Kit comes in a SOIC8 package and offers a wideband range from DC to 400kHz.
Features
- Plug-and-play (all included from copper bar to sensor)
- Provided with extra PCB to connect any other variant
- Build and test different configurations (shields, sensors, sensitivity)
- Short response time
- Ground layer and decoupling capacitors for high EMC performance
- High-speed current sensor (programmable)
- Linear transfer characteristic (programmable)
Kit Contents
- Evaluation board provided with the MLX91216LDC-CAV-001-RE and MLX91216LDC-ARX-300-RE for a quick start
- MLX91208/MLX91216 evaluation board with no IC to be customized with the reference needed
- MLX91218 evaluation board with no IC to be customized with the reference needed
- Additional spare sensors
- SiFe ferromagnetic shields
- Copper bars
- Plastic holders for easy assembly of all possible configurations
Additional Resources
Associated Kit
Melexis DVK Conventional Hall Core Development Kit
Evaluates MLX91209, MLX91211, MLX91217, and MLX91219 conventional Hall current sensor ICs.
Associated Products
Melexis MLX91208 IMC-Hall® Current Sensors
Features Triaxis™ Hall technology with small size application design and simple construction.
Melexis MLX91216 IMC-Hall® Current Sensors
Use open-loop Hall-effect to increase the accuracy of sensitivity and offset over temperature.
Melexis MLX91218 400kHz IMC-Hall® Current Sensors
Monolithic Hall-effect sensors with dual OCD functionality, 3.3V to 5V supply, and an improved SNR.
