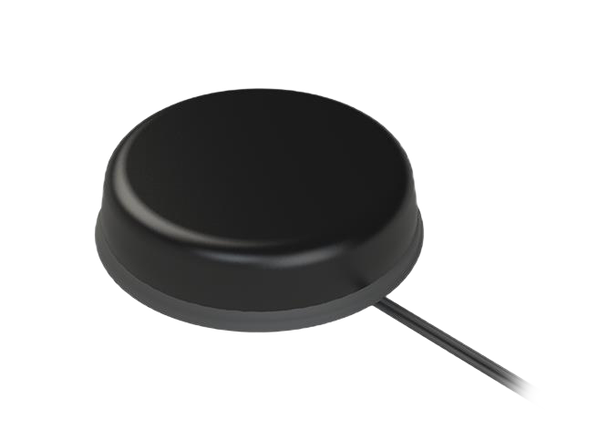

Maxtena MEA-LWIG-SM Screw Mount Antenna

Maxtena MEA-LWIG-SM Screw Mount Antenna is a high-performance antenna that covers all 5GNR, ISM, Iridium, and GPS/GLONASS/QZSS/Galileo standards frequencies. This antenna is a 4-in-1 low-profile antenna solution ideal for maintaining constant network connectivity. The MEA-LWIG-SM screw mount antenna is easy to install with maximum durability offering IP67 rated housing and anti-rotation mounting. This antenna features four cables with SMA-male standard connectors and 3m standard cable length. The MEA-LWIG-SM screw mount antenna is fully customizable by offering additional connector types, cable lengths, and cable types. The MEA-LWIG-SM screw mount antenna is RoHS compliant. Typical applications include IoT applications, telematics, navigation, satellite communications, and LTE applications.

Features

  • 4-in-1 antenna (5GNR, 2.4/5/6GHz ISM, Iridium, and GPS/GLONASS/QZSS/Galileo)
  • Screw mount
  • Anti-rotation mechanism
  • Customizable cable and connector
  • Connector type:
    • SMA-male standard/SMA-Male-RP standard
  • Radome:
    • ABS
  • Radome color:
    • Black
  • Substance compliance:
    • RoHS
  • Certificates:
    • IK09, IP67, and IP69K

Specifications

  • Cable1:
    • 617MHz to 960MHz operating frequency range
      • -7.4dB return loss
      • VSWR:
        • 3.3:1
      • 19.7% efficiency
      • -1.7dBi peak gain
      • -8.5dBi average gain
    • 1427MHz to 2690MHz operating frequency range
      • -9.7dB return loss
      • VSWR:
        • 3.3:1
      • 19.7% efficiency
      • -1.7dBi peak gain
      • -8.5dBi average gain
    • 3300MHz to 5000MHz operating frequency range
      • -11.2dB return loss
      • VSWR:
        • 2.2:1
      • 13.3% efficiency
      • -1.3dBi peak gain
      • -9.4dBi average gain
    • 5150MHz to 5925MHz operating frequency range
      • -14.2dB return loss
      • VSWR:
      • 1.7:1
      • 15.9% efficiency
      • 0.6dBi peak gain
      • -8.2dBi average gain
    • 50Ω impedance
    • Linear polarization
    • Omni-directional radiation pattern
    • 25W maximum input power
  •  Cable2:
    • 2410MHz to 2490MHz operating frequency range
      • -16.7dB return loss
      • VSWR:
        • 1.4:1
      • 30.5% efficiency
      • 1.2dBi peak gain
      • -5.2dBi average gain
    • 4920MHz to 5925MHz operating frequency range
      • -14dB return loss
      • VSWR:
        • 1.6:1
      • 13.8% efficiency
      • 0dBi peak gain
      • -8.9dBi average gain
    • 5925MHz to 7125MHz operating frequency range
      • -7.9dB return loss
      • VSWR:
        • 2.5:1
      • 52.1% efficiency
      • 5.2dBi peak gain
      • -3dBi average gain
    • 50Ω impedance
    • Linear polarization
    • Omni-directional radiation pattern
    • 10W maximum input power
  •  Cable3:
    • 1616MHz to 1627MHz frequency range
    • 36mm x 36mm x 4mm patch size
    • -18.8dB return loss
    • VSWR:
      • 1.2:1
    • 76% efficiency
    •  4.5dBic peak gain
    • -1.1dB average gain
    • 50Ω impedance
    • ≤3dB axial ratio
    • Hemispherical radiation pattern
    • RHCP polarization
  • Cable4:
    • Frequency range:
      • 1575.42MHz
      • 1598MHz to 1606MHz
    • 3.6dBi passive gain
    • 50Ω impedance
    • 25mm x 25mm x 4mm patch size
    • Hemispherical radiation pattern
    • 1.5V to 3.6V voltage range
    • 28dB @2.7V active gain
    • 1.8dB @2.7V noise figure
    • 9mA @2.7V current consumption
    • 24.3mW @2.7V power consumption
    • Saw filter type:
      • Pre-filter

Applications

  • IoT applications
  • Telematic
  • Navigation
  • Satellite communications
  • LTE applications
Pubblicato: 2021-09-17 | Aggiornato: 2022-03-11
