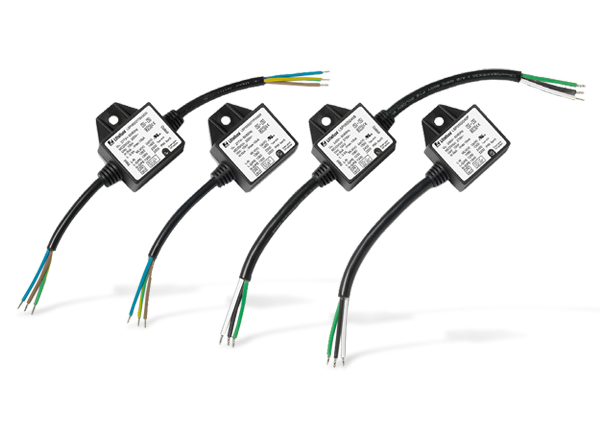

Littelfuse LSP05GI LED Lighting Surge Protection Modules offer 10kA max discharge current and are ideal for use in outdoor and commercial LED lighting fixtures for transient overvoltage protection. These devices utilize Littelfuse’s thermally protected varistor technology along with a built-in thermal disconnect function to provide additional protection. This prevents catastrophic failure and fire hazard even under extreme circumstances of varistor end-of-life or sustained overvoltage conditions. The LSP05GI features a built-in LED indicator that notifies users when replacement is needed.
10kA Maximum Discharge Current (Imax), 8/20μs
IEC 61643-11/EN 61643-11 Approved
UL 1449 Approved
Build-in LED Indication saves maintenance time by identifying replacement need
Suitable for use in a luminaire with Class I or Class II insulation
