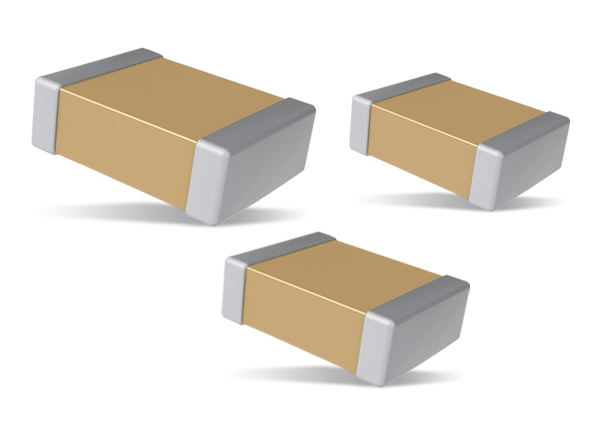

KEMET Telecom Tip & Ring (250V) X7R SMD MLCCs

KEMET Telecom Tip and Ring (250V) X7R SMD MLCCs are a family of Class II ceramic chip capacitors used for telecommunication ringer circuits. These board-saving dielectrics can replace high-voltage film devices, making them suitable for situations where Q and capacitance stability are not critical. The X7R MLCCs operate between -55°C and +125°C, offering low ESR, superior high-frequency filtering, and a 250VDC voltage rating. These lead-free KEMET MLCCs are offered in eight case sizes with capacitance values ranging from 220pF to 1.2µF.

Features

  • Lead-free and non-polar with excellent solderability
  • 250VDC voltage rating
  • 180pF to 0.47µF capacitance range
  • -55°C to +125°C operating temperature
  • Available Case Sizes
    • 0603, 0805, 1206, 1210, 1812, 1825, 2220, and 2225
  • ±5%, ±10%, and ±20% tolerances available
  • RoHS and REACH compliant

Applications

  • Telecommunication ringing circuits
  • Switch mode power supply snubber circuits
  • High-voltage DC blocking and high-voltage coupling
  • Analog and digital modems
  • Fax machines
  • Wireless base stations
  • DVR boxes
  • Satellite dishes
  • High-voltage power supplies
  • DC/DC converters
  • Ethernet, POS, and ATM hardware

View All KEMET SMD ≤250V MLCCs

Commercial Grade SMD ≤250V MLCCs

KEMET Commercial Grade SMD ≤250V MLCCs

SMD MLCCs ≤250VDC with capacitance values up to 100uF and case sizes ranging from EIA 0201 to 2225.

Learn MoreInformazioni su KEMET Commercial Grade SMD ≤250V MLCCs View ProductsCorrelato a KEMET Commercial Grade SMD ≤250V MLCCs

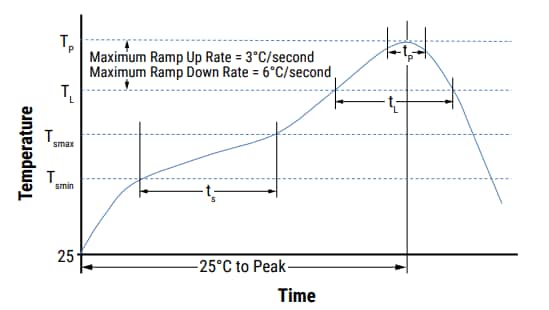

Reflow Solder Profile

Chart - KEMET Telecom Tip & Ring (250V) X7R SMD MLCCs
