E-Switch TL1018 Tact Switches

E-Switch TL1018 Tact Switches are surface-mount tactile switches measuring 3.5mm x 2.6mm with a life expectancy of up to 500,000 cycles. E-Switch TL1018 Tact Switches are rated for up to 50mA, 12VDC, and operate over a -40°C to +85°C temperature range. This switch series offers 160gf, 240gf, 340gf, and 450gf actuation force options and a ground terminal option.

Features

  • Surface-mount design
  • 3.5mm length x 2.6mm width
  • Up to 500,000 cycles life expectancy
  • Multiple actuation force options
  • Ground terminal option

Applications

  • Consumer electronics
  • Audio/visual
  • Medical equipment
  • Instrumentation
  • Computer peripherals
  • Telecommunication

Specifications

  • 50mA, 12VDC electrical rating
  • 100mΩ maximum (initial) contact resistance
  • 100MΩ minimum at 500VDC insulation resistance
  • 250VAC dielectric strength for 1 minute
  • 0.15mm ±0.1mm travel
  • Lifecycles
    • 500,000 (160gf)
    • 200,000 (240gf, 340gf, and 450gf)
  • -40°C to +85°C operating temperature range

Application Examples

Infographic - E-Switch TL1018 Tact Switches

Schematics

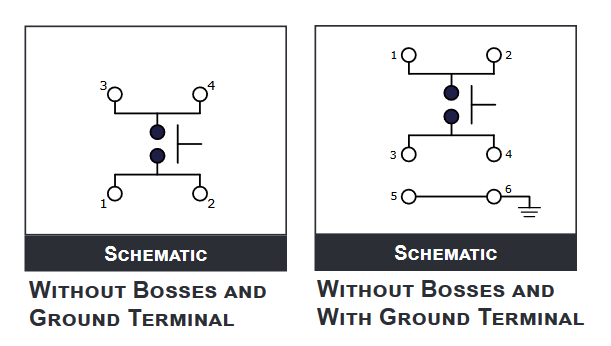

Schematic - E-Switch TL1018 Tact Switches
