DISPLAY VISIONS Evaluation Boards for eDIP Displays

DISPLAY VISIONS Evaluation Boards for eDIP Displays shorten development time and cost when designing applications based on EA eDIP Intelligent Graphic and TFT Display Modules. The Evaluation Boards feature a USB interface allowing direct connection to a PC. The Evaluation Boards can be power by USB or an external 3.3V to 5.V power supply. Potentiometers allow control of the analog inputs, DIP switches allow data rate and address adjustments, and LEDs are provided to indicate status and data transfer.

Features

  • Shorten development time
  • USB interface
  • Buttons, DIP switch, and potentiometers for configuration
  • LEDs for status and data traffic
  • Wide 3.3V to 5.0V voltage range
  • USB or external power options
  • Includes USB cable
  • Beeper for touch feedback

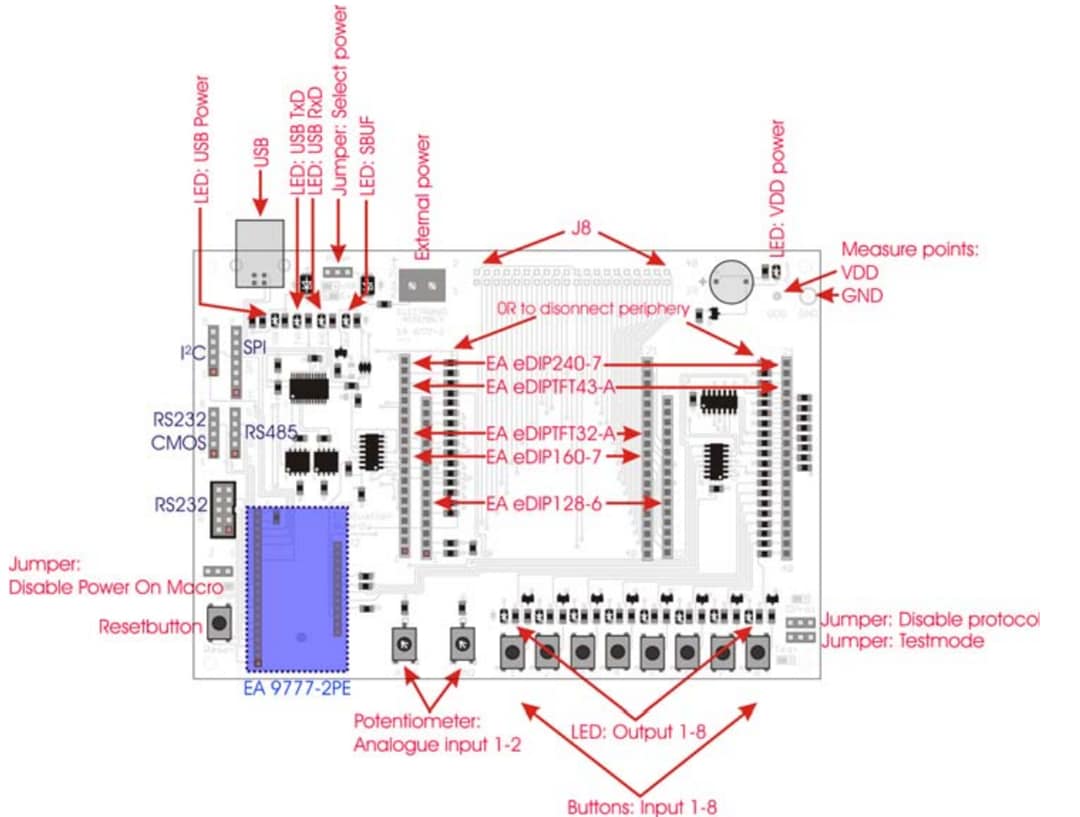

Example Board Layout

Mechanical Drawing - DISPLAY VISIONS Evaluation Boards for eDIP Displays

Related Products

DISPLAY VISIONS eDIP TFT Displays

3.2", 4.3", 5.7" and 7.0" intelligent display modules, offered with and without touch panels.

Learn MoreInformazioni su DISPLAY VISIONS eDIP TFT Displays View ProductsCorrelato a DISPLAY VISIONS eDIP TFT Displays

DISPLAY VISIONS 24-bit RGB TFT Display Modules

Wide variety of 24-bit RGB TFT Display Modules, offered both with and without touchscreen.

Learn MoreInformazioni su DISPLAY VISIONS 24-bit RGB TFT Display Modules View ProductsCorrelato a DISPLAY VISIONS 24-bit RGB TFT Display Modules
