Dialight 521 Series Gull-Wing LEDs

Dialight 521 Series Gull-Wing LEDs are 1.9mm LEDs with gull-wing leads that dissipate power up to 120mW. These LEDs are available in yellow-green, orange, red, blue, white, true-green, and non-visible IR color varieties. The 521 LEDs feature up to 50mA forward current, 5V reverse voltage, 3.5V typical forward voltage, and 7700mcd maximum luminous intensity (for true green). These LEDs operate within the -20ºC to 85ºC temperature range. The 521 series gull-wing LEDs are ideal for critical care medical devices.

Features

  • 1.9mm LEDs with gull-wing leads
  • Available in yellow-green, orange, red, blue, white, true-green, and non-visible IR color varieties
  • Up to 120mW power dissipation
  • 50mA forward current and 5V reverse voltage
  • -20ºC to 85ºC operating temperature range

Applications

  • Critical care medical devices

Dimensions

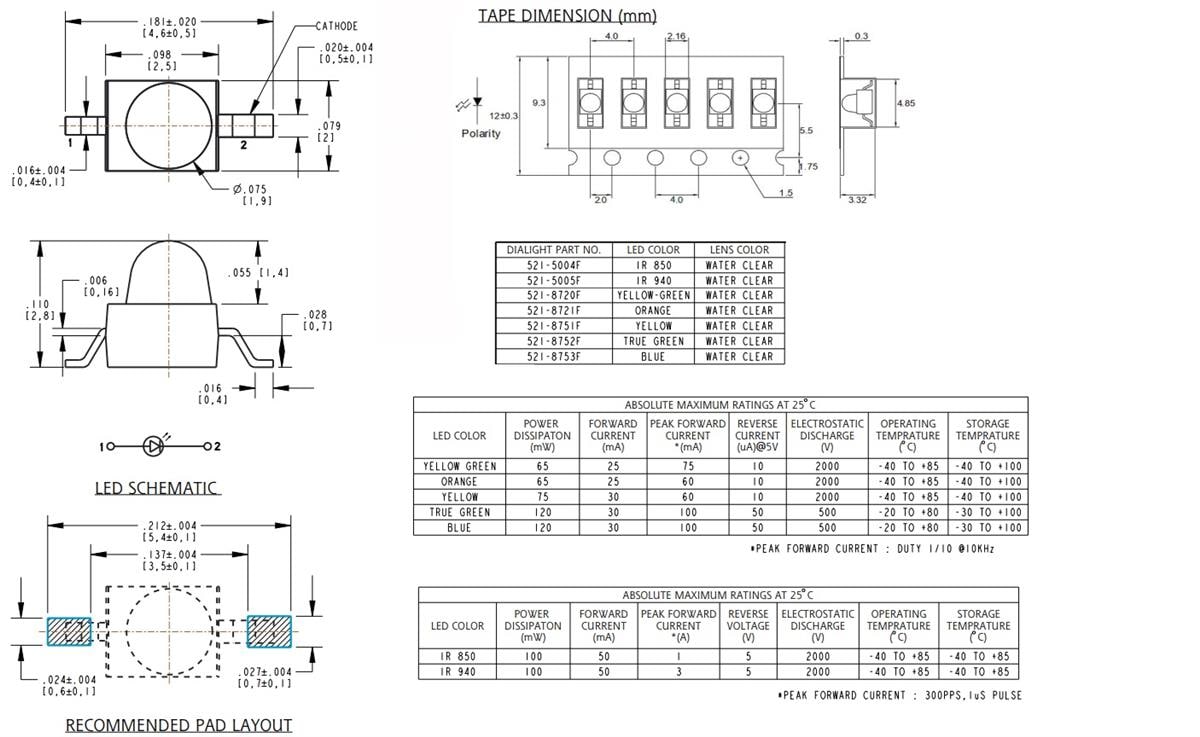

Mechanical Drawing - Dialight 521 Series Gull-Wing LEDs
View Results ( 9 ) Page
Codice prodotto Scheda dati Descrizione If - Corrente diretta Vf - Tensione diretta Potenza nominale Angolo di visualizzazione Intensità uminosa Colore di illuminazione Colore della lente Dimensione lente Stile di montaggio
521-5004F 521-5004F Scheda dati Trasmittenti a infrarossi IR 850nm 50 mA 1.6 V 100 mW 20 deg Round, Dome SMD/SMT
521-5005F 521-5005F Scheda dati Trasmittenti a infrarossi IR 940nm 50 mA 1.6 V 100 mW 20 deg Round, Dome SMD/SMT
521-8720F 521-8720F Scheda dati LED monocolore YELLOW GREEN 25 mA 2.6 V 65 mW 20 deg 700 mcd Yellow, Green Clear Round, Dome SMD/SMT
521-8721F 521-8721F Scheda dati LED monocolore ORANGE 25 mA 2.6 V 65 mW 20 deg 3400 mcd Orange Clear Round, Dome SMD/SMT
521-8750F 521-8750F Scheda dati LED monocolore RED 50 mA 2.4 V 120 mW 20 deg Red Clear Round, Dome SMD/SMT
521-8751F 521-8751F Scheda dati LED monocolore YELLOW 30 mA 2.6 V 75 mW 20 deg 1500 mcd Yellow Clear Round, Dome SMD/SMT
521-8752F 521-8752F Scheda dati LED monocolore TRUE GREEN 30 mA 4 V 120 mW 20 deg 4400 mcd Green Clear Round, Dome SMD/SMT
521-8753F 521-8753F Scheda dati LED monocolore BLUE 30 mA 4 V 120 mW 20 deg 1500 mcd Blue Clear Round, Dome SMD/SMT
521-8754F 521-8754F Scheda dati LED monocolore WHITE 30 mA 3.7 V 111 mW 65 deg 350 mcd White Yellow Round, Dome SMD/SMT
