Arduino ABX00142 Nano R4 Evaluation Board

Arduino ABX00142 Nano R4 Evaluation Board is a compact and powerful development platform designed for makers, educators, and engineers working on embedded and Internet of Things (IoT) projects. The Arduino ABX00142 features the Renesas RA4M1 32-bit Arm® Cortex®-M4 microcontroller running at 48MHz, offering enhanced performance and efficiency over previous Nano boards. With built-in Wi-Fi® and BLUETOOTH® connectivity via the u-blox NINA-W102 module, the Nano R4 is ideal for wireless applications such as smart home devices, remote sensors, and connected wearables. The board includes 14 digital I/O pins (11 with PWM), eight analog inputs, and a DAC output, providing flexibility for a wide range of interfacing needs. ABX00142 also supports USB Type-C® for power and programming, and a compact 45mm x 18mm form factor makes the device suitable for space-constrained designs.

Features

  • Seamless transition from prototyping to production with the RA4M1 microcontroller already included in the UNO R4 family
  • Measuring 45mm x 18mm, the Nano form factor is ideal for integration into compact and space-constrained applications
  • Molded pins and single-sided components facilitate the creation of custom hardware solutions
  • Integrated QWIIC connector for easy integration with a wide range of sensors and peripherals
  • Additional 5V I2C port on pins A4 and A5 provide further connection options
  • Castellated pins and single-sided components for easy assembly and customization
  • Customize the onboard RGB LED to indicate different operating states, making debugging and system monitoring more intuitive

Applications

  • IoT prototyping and development
  • Sensor integration
  • Wearable technology
  • Robotics
  • Educational tools
  • Home automation
  • Data logging
  • Edge computing

Specifications

  • Core
    • Renesas RA4M1 MCU (Arm Cortex-M4, 32-bit, 48MHz)
    • 5V operating voltage
    • 6V to 21V recommended input voltage range
    • 14x digital I/O pins (11x support PWM)
    • 8x analog input pins
    • 1x analog output pin (DAC)
    • 8mA DC current per I/O pin
  • Memory
    • 256KB flash
    • 32KB SRAM
  • Connectivity
    • Wi-Fi and Bluetooth via u-blox NINA-W102 module
    • USB Type-C connector interface
    • Suppirts UART, I2C, and SPI
  • 5V and 3.3V regulators onboard
  • 45mm x 18mm size

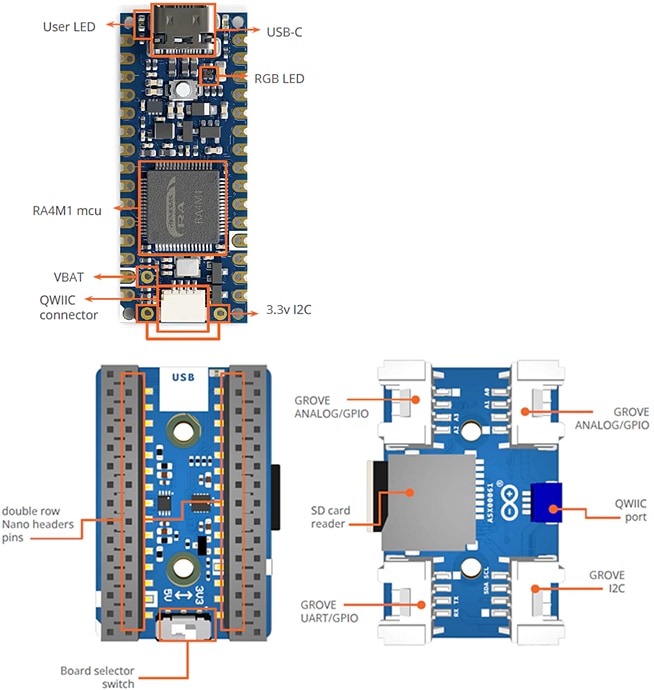

Overview

Location Circuit - Arduino ABX00142 Nano R4 Evaluation Board
Location Circuit - Arduino ABX00142 Nano R4 Evaluation Board

Device Layout

Mechanical Drawing - Arduino ABX00142 Nano R4 Evaluation Board

Onboard Components

Gruppo di microcontroller a 32 bit RA4M1

Renesas Electronics Gruppo di microcontroller a 32 bit RA4M1

Dispone di un core ARM® Cortex®-M4F di 48 MHz, con controller LCD integrato e touch screen capacitivo per HMI.

Learn MoreInformazioni su Renesas Electronics Gruppo di microcontroller a 32 bit RA4M1 View ProductsCorrelato a Renesas Electronics Gruppo di microcontroller a 32 bit RA4M1
Moduli MCU multiradio NINA-W10

u-blox Moduli MCU multiradio NINA-W10

Moduli che integrano un potente microcontroller e una radio per la comunicazione wireless.

Learn MoreInformazioni su u-blox Moduli MCU multiradio NINA-W10 View ProductsCorrelato a u-blox Moduli MCU multiradio NINA-W10
