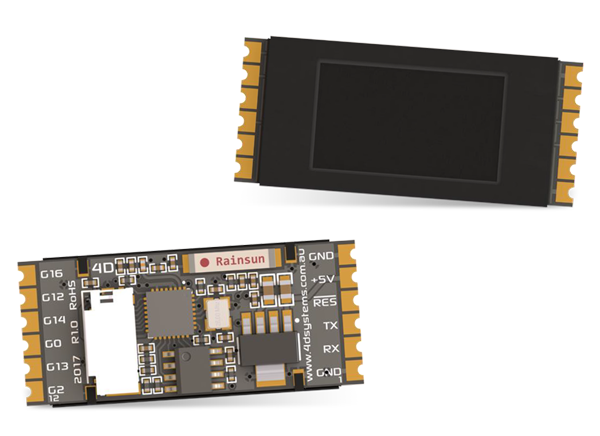

4D Systems IoD-09TH Display Module features a full-color 0.9-inch TFT LCD. This display module is powered by the WiFi-enabled ESP8266, which offers numerous functionalities for the user. The IoD-09TH display module is easily programmed using 4D systems Workshop-4 or the Arduino IDE installed with the ESP8266 core. This display module features 12 Through Hole (TH) pads, six on each end with male pin headers, which help connect easily to an application, motherboard, and accessory boards. The IoD-09TH module acts as a master/slave device, effortlessly connect to the internet, and can communicate to SPI, I2C, or 1-wire devices.
Powerful Intelligent LCD-TFT display module powered by the Espressif ESP8266 SoC
Full-color TFT screen
Built-in Wi-Fi suitable for IoT applications
DOS compatible file access (FAT16 or FAT32 format)
Integrated TCP/IP protocol stack
12pin/pad connection for all signals, power, communications, and programming
On-board push/pull type microSD memory card connector for multimedia storage and data logging purposes
4.0V to 5.5V range operation (single supply)
-10ºC to 60ºC operating temperature range
0.9-inch diagonal display size
80 x 160 resolution (portrait viewing)
4Mbit (512kb) of flash memory for user application code and data
4D Systems SK-IoD-09TH Starter Kit
Provides the necessary hardware to try out all the features of the IoD-09TH display module.
