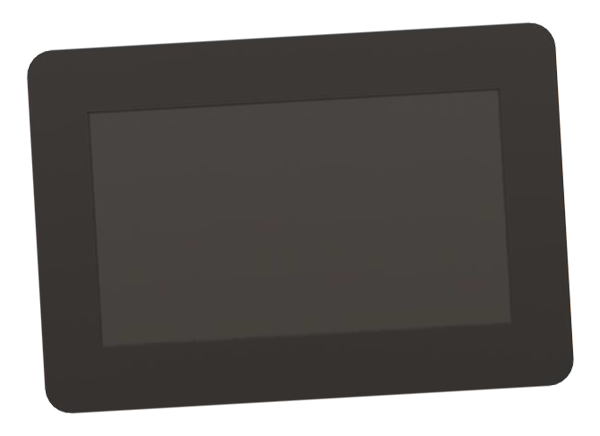

4D Systems gen4 FT81x Series Embedded SPI Displays

4D Systems gen4 FT81x Series Embedded SPI Displays feature a resistive touch panel or capacitive touch panel display, with an integrated FTDI FT81x video engine. The FT81x video engine targets high-quality graphics displays with widget support, designed to offload the Host Processor and provide a variety of graphic features.

The 4D Systems gen4 FT81x Series Embedded SPI Displays feature a 4.3", 5.0", or 7.0" color TFT LCD display. The display provides 4 in 1 functionality, a TFT LCD Display (4.3"/5.0"/7.0"), audio with an amplifier enable, resistive/capacitive touch screen, and an integrated video engine. This combination built directly into the screen allows for simple integration into several applications. The FT812 is for resistive touch models, and the FT813 is for capacitive touch models.

Features

  • 480x272 Resolution (4.3”)
  • 800x480 Resolution (5.0” & 7.0”)
  • TFT Screen with an integrated 4-wire resistive touch panel (T), or capacitive touch panel (CT) with cover lens bezel (CLB)
  • Mono PWM audio output with separate amplifier enable, designed to be connected directly to a simple filter and external amplifier circuit
  • On board FTDI FT81x video engine
  • SPI Interface to host processor/controller, up to 30Mhz (mode 0 only)
  • Programmable interrupt controller, with dedicate interrupt pin to host
  • 64 voice polyphonic sound synthesizer
  • PWM dimming control for LCD backlight
  • Power mode control to put the FT812/FT813 into sleep and standby modes, with dedicated power down pin to host
  • JPEG and motion-JPEG decode
  • Single 5.0V supply
  • 3.3V SPI Bus, audio output and amplifier enable, along with GPIO (not 5V tolerant)
  • Module dimensions:
    • (4.3” T) 127.6 x 69.3 x 7.9mm
    • (5.0” T) 142.8 x 77.9 x 7.8mm
    • (7.0” T) 187 x 102.1 x7.8mm
    • (4.3” CT) 127.6 x 69.3 x 8.1mm
    • (4.3” CT-CLB) 123 x 84.5 x 8.4mm
    • (5.0” CT/CLB) 140.7 x 93.8 x 8.3mm
    • (7.0” CT/CLB) 190.1 x 121.9 x 9mm
  • Touch Area:
    • 4.3” - 95.04 x 53.86mm
    • 5.0” - 108 x 64.80mm
    • 7.0” - 153.84 x 85.63mm
  • 4 x 4mm Mounting holes on resistive touch modules
  • 3M Adhesive for capacitive touch modules on the rear of the CLB (Cover Lens Bezel) periphery
  • RoHS and CE compliant

Applications

  • Point of sale machines
  • Multi-function printers
  • Instrumentation
  • Home security systems
  • Video conferencing systems
  • Medical appliances
  • Blood pressure displays
  • Heart monitors
  • Home appliance devices
  • Thermostats
  • Vending machines

Kit Contents

  • Display module
  • gen4-Breakout board
  • 30-way 150mm FPC cable

Associated Products

FT81x Embedded Video Engine

Bridgetek FT81x Embedded Video Engine

Graphic controllers for embedded applications to generate high-quality Human Machine Interfaces.

Learn MoreInformazioni su Bridgetek FT81x Embedded Video Engine View ProductsCorrelato a Bridgetek FT81x Embedded Video Engine

Additional Resources

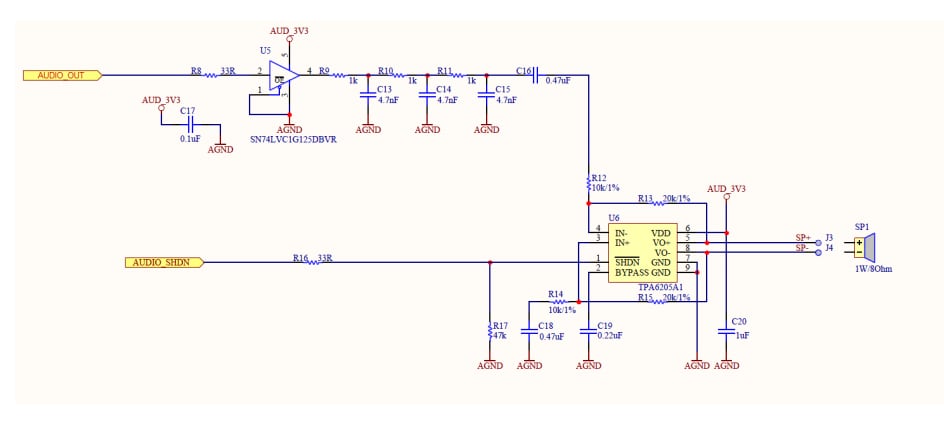

Reference Circuit

Location Circuit - 4D Systems gen4 FT81x Series Embedded SPI Displays
