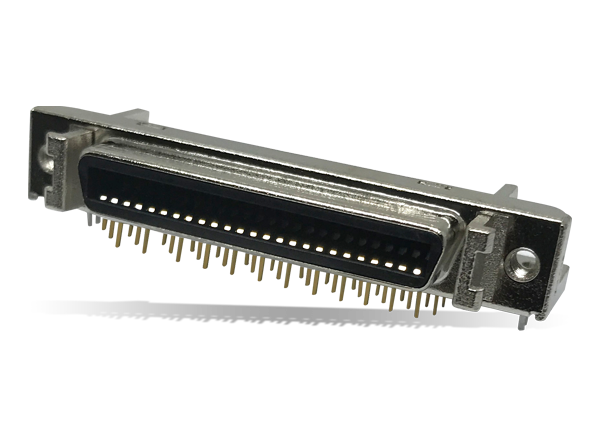

3M MDR Boardmount Receptacle Plug Connectors are designed around a fine pitch ribbon-style contact for reliable electrical connection. With pin counts from 14 to 100, thru-hole, surface mount and press fit mounting styles, and multiple connector orientations, the 3M™ MDR boardmount product line offers engineers great flexibility when designing I/O interfaces. MDR Boardmount connectors feature either latch stands to allow latching of a quick-release backshell or threaded holes to allow thumbscrew attachment (with the proper hardware). Most MDR connectors feature 360 degree shielding around the entire interface to help improve EMI and RFI protection in sensitive applications. The integral dimples of the MDR metal shell ensure proper grounding of the shroud before mating, reducing the possibility of a destructive ESD event between the boardmount and wiremount connectors.
Wiper-on-wiper contact for reliable repetitive plugging
Rugged die cast metal case construction
Screw lockdown for reliable PCB retention
Interface latch design for connection stability
IEEE 1284C Interface as a 36 contact connector
14, 20, 26, 36, 40, 50, 68, 80, and 100 contacts
Computer video and peripheral
Enterprise and networking
Test and instrumentation
View All High-Density Devices
3M Connectors High Density I/O Connectors & Assemblies
Half pitch interconnect system designed to meet the needs of high speed/density I/O applications.
