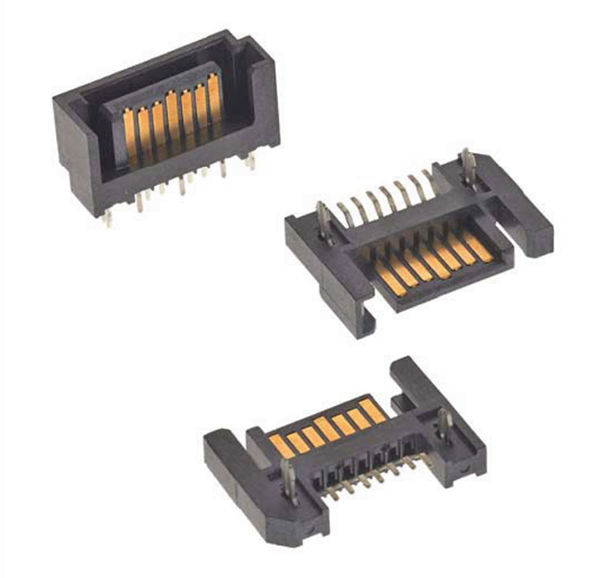

3M™ 5607 Series Serial AT Attachment (SATA) Connectors include 7-position connectors to support motherboard signal requirements. The 5607 Series meets the SATA specification and features EMLB contacts for "hot swap" capability and blind-mate polarization for easy cable attachment. A PCB retention clip aids in manufacturing. The 5607 series is available in SMT signal plug and through-hole versions.
7-Position supports motherboard signal requirements
EMLB contacts for "hot swap"
Blind mate polarization for easy cable attach
Through-hole and surface mount options
PCB retention clip aids manufacturing
Meets SATA specification
High-temperature thermoplastic material
UL 94V-0 flammability
1.5A current rating
103Ω minimum insulation resistance
500VAC withstanding voltage at sea level
-40°C to +85°C temperature range
Gold flash in the wiping area
100µ" tin for the solder tails
50µ" nickel underplating
3M Serial Advanced Technology Attachment Connectors
Provides small, fast, and reliable solutions for storage interfaces.
